一般做法：

1：在头文件中定义类： 定义类的所有成员函数的原型。 定义私有和公共数据成员。 定义类构造函数原型。 2：定义cpp文件： 包含上面的头文件。 包含已声明成员函数的工作代码。 包含在构造函数中封装必要的初始化代码。

例如.h文件

// example_ros_class.h header file //// wsn; Feb, 2015// include this file in "example_ros_class.cpp"// here's a good trick--should always do this with header files:// create a unique mnemonic for this header file, so it will get included if needed,// but will not get included multiple times#ifndef EXAMPLE_ROS_CLASS_H_#define EXAMPLE_ROS_CLASS_H_//some generically useful stuff to include...#include

    #include

     #include

      #include

       #include

         //ALWAYS need to include this//message types used in this example code;  include more message types, as needed#include

          #include

          #include

            // uses the "Trigger.srv" message defined in ROS// define a class, including a constructor, member variables and member functionsclass ExampleRosClass{ public: ExampleRosClass(ros::NodeHandle* nodehandle); //"main" will need to instantiate a ROS nodehandle, then pass it to the constructor // may choose to define public methods or public variables, if desiredprivate: // put private member data here; "private" data will only be available to member functions of this class; ros::NodeHandle nh_; // we will need this, to pass between "main" and constructor // some objects to support subscriber, service, and publisher ros::Subscriber minimal_subscriber_; //these will be set up within the class constructor, hiding these ugly details ros::ServiceServer minimal_service_; ros::Publisher minimal_publisher_; double val_from_subscriber_; //example member variable: better than using globals; convenient way to pass data from a subscriber to other member functions double val_to_remember_; // member variables will retain their values even as callbacks come and go // member methods as well: void initializeSubscribers(); // we will define some helper methods to encapsulate the gory details of initializing subscribers, publishers and services void initializePublishers(); void initializeServices(); void subscriberCallback(const std_msgs::Float32& message_holder); //prototype for callback of example subscriber //prototype for callback for example service bool serviceCallback(std_srvs::TriggerRequest& request, std_srvs::TriggerResponse& response);}; // note: a class definition requires a semicolon at the end of the definition#endif // this closes the header-include trick...ALWAYS need one of these to match #ifndef









//.cpp文件

#include "example_ros_class.h"//CONSTRUCTOR:  this will get called whenever an instance of this class is created// want to put all dirty work of initializations here// odd syntax: have to pass nodehandle pointer into constructor for constructor to build subscribers, etcExampleRosClass::ExampleRosClass(ros::NodeHandle* nodehandle):nh_(*nodehandle){    // constructor    ROS_INFO("in class constructor of ExampleRosClass");    initializeSubscribers(); // package up the messy work of creating subscribers; do this overhead in constructor    initializePublishers();    initializeServices();        //initialize variables here, as needed    val_to_remember_=0.0;         // can also do tests/waits to make sure all required services, topics, etc are alive}//member helper function to set up subscribers;// note odd syntax: &ExampleRosClass::subscriberCallback is a pointer to a member function of ExampleRosClass// "this" keyword is required, to refer to the current instance of ExampleRosClassvoid ExampleRosClass::initializeSubscribers(){       ROS_INFO("Initializing Subscribers");    minimal_subscriber_ = nh_.subscribe("example_class_input_topic", 1, &ExampleRosClass::subscriberCallback,this);      // add more subscribers here, as needed}//member helper function to set up services:// similar syntax to subscriber, required for setting up services outside of "main()"void ExampleRosClass::initializeServices(){       ROS_INFO("Initializing Services");    minimal_service_ = nh_.advertiseService("example_minimal_service",                                                   &ExampleRosClass::serviceCallback,                                                   this);      // add more services here, as needed}//member helper function to set up publishers;void ExampleRosClass::initializePublishers(){       ROS_INFO("Initializing Publishers");    minimal_publisher_ = nh_.advertise

    ("example_class_output_topic", 1, true);     //add more publishers, as needed    // note: COULD make minimal_publisher_ a public member function, if want to use it within "main()"}// a simple callback function, used by the example subscriber.// note, though, use of member variables and access to minimal_publisher_ (which is a member method)void ExampleRosClass::subscriberCallback(const std_msgs::Float32& message_holder) {       // the real work is done in this callback function    // it wakes up every time a new message is published on "exampleMinimalSubTopic"    val_from_subscriber_ = message_holder.data; // copy the received data into member variable, so ALL member funcs of ExampleRosClass can access it    ROS_INFO("myCallback activated: received value %f",val_from_subscriber_);    std_msgs::Float32 output_msg;    val_to_remember_ += val_from_subscriber_; //can use a member variable to store values between calls; add incoming value each callback    output_msg.data= val_to_remember_;    // demo use of publisher--since publisher object is a member function    minimal_publisher_.publish(output_msg); //output the current value of val_to_remember_ }//member function implementation for a service callback functionbool ExampleRosClass::serviceCallback(std_srvs::TriggerRequest& request, std_srvs::TriggerResponse& response) {       ROS_INFO("service callback activated");    response.success = true; // boring, but valid response info    response.message = "here is a response string";    return true;}int main(int argc, char** argv) {       // ROS set-ups:    ros::init(argc, argv, "exampleRosClass"); //node name    ros::NodeHandle nh; // create a node handle; need to pass this to the class constructor    ROS_INFO("main: instantiating an object of type ExampleRosClass");    ExampleRosClass exampleRosClass(&nh);  //instantiate an ExampleRosClass object and pass in pointer to nodehandle for constructor to use    ROS_INFO("main: going into spin; let the callbacks do all the work");    ros::spin();    return 0;}


//测试

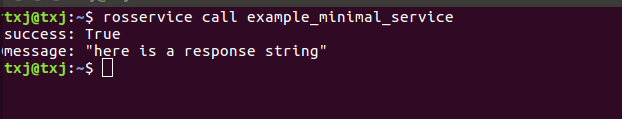

在终端分别输入 rosservice call example_minimal_service

请求服务。

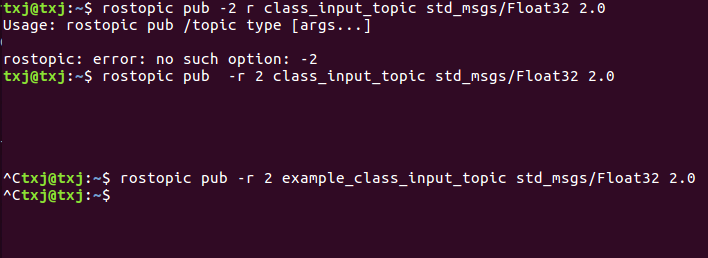

在终端发布话题

rostopic pub -r 2 example_class_input_topic stm_msgs/Float32 2.0

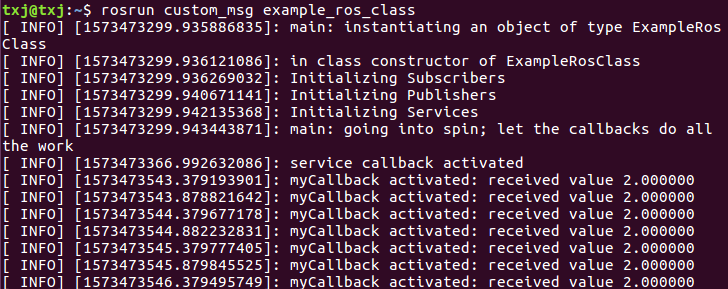

结果显示
